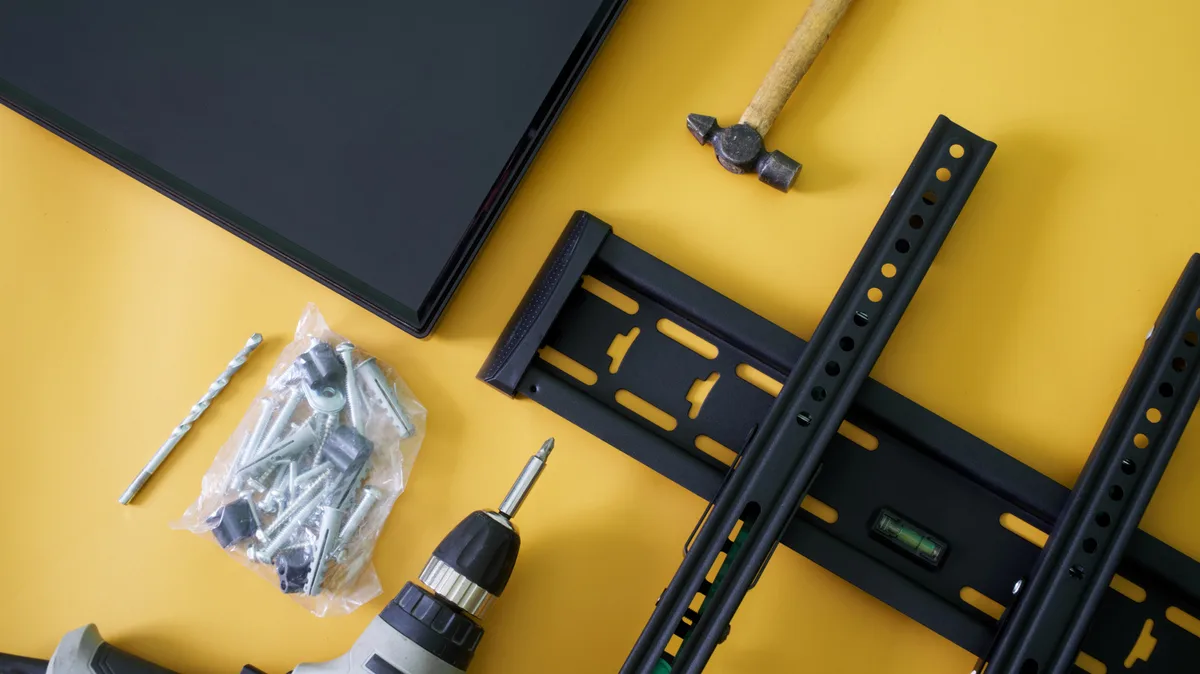

What is a VESA mount and how to know what type your TV has

The VESA dimensions tell you where the mounting holes line up, but you still need to check the mount's weight limit and hardware.

The first number is the horizontal distance and the second is the vertical distance. So a TV with a 400 × 200 pattern has mounting holes spaced 400mm apart from left to right and 200mm apart from top to bottom. A 200 × 200 pattern measures 200mm in both directions.

The VESA numbers don't describe the TV's resolution or screen dimensions. Larger TVs often use larger mounting patterns, but screen size alone doesn't tell you which pattern a particular model uses. Checking your exact TV model is more reliable than guessing from its screen size.

You also don't need a mount limited to that exact VESA size. Many mounts support multiple VESA patterns, so you don't need a bracket labeled only for your exact size. Your TV's pattern just needs to appear on the mount's list of supported patterns.

If you can't find the specification, you can measure the mounting holes yourself. Measure from the center of one mounting hole to the center of the corresponding hole horizontally, then do the same vertically. Write the result as horizontal × vertical, in millimeters .

For example, if the mounting holes are 400mm apart horizontally and 200mm apart vertically, the TV has a 400 × 200 VESA pattern. Measure in millimeters so you can compare the result directly with the mount's specifications.

Compare the mount's maximum load with the weight of your TV. A bracket can support the correct VESA pattern and still be unsuitable for a TV that's too heavy.

You should also check the hardware required by your TV. VESA compatibility also says nothing about how the bracket should attach to the wall. Once you've confirmed the pattern and weight rating, use the TV manufacturer's instructions to check the required mounting screws and follow the mount manufacturer's instructions for attaching the bracket to the wall.
